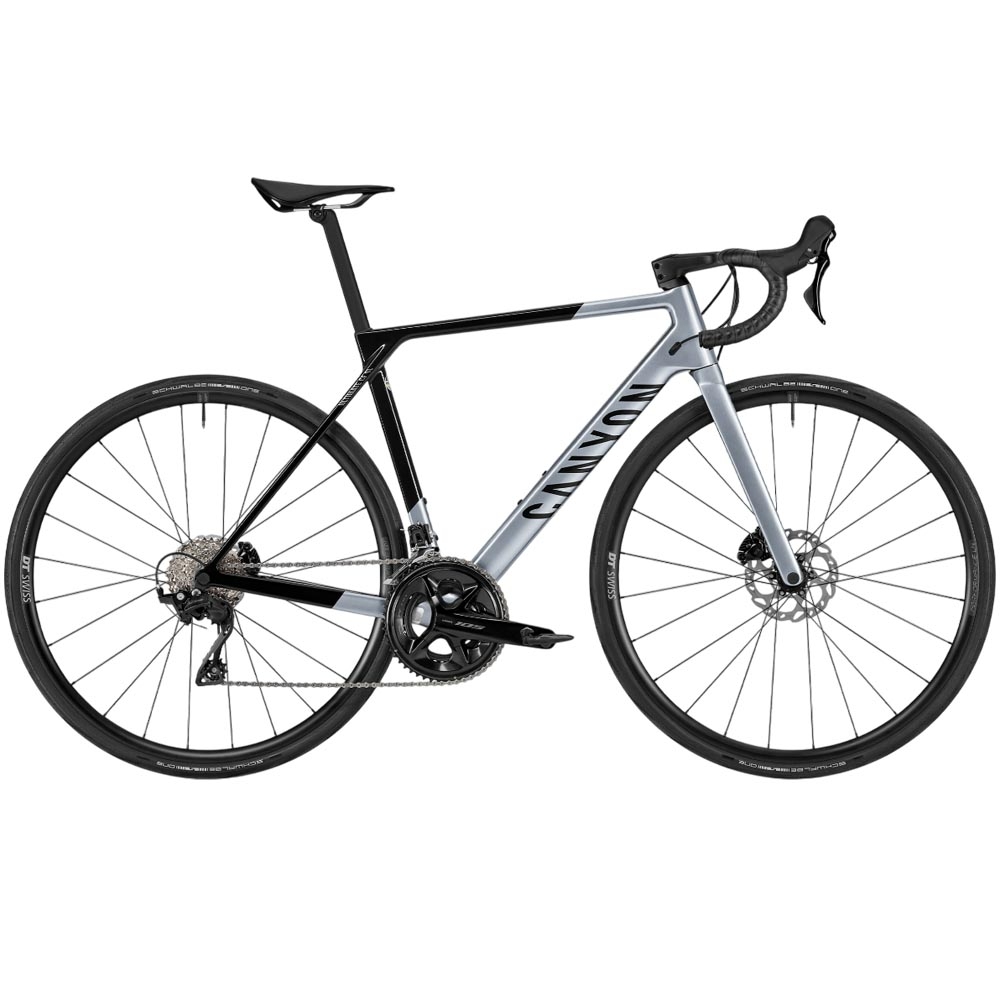

2025 CANYON ULTIMATE CF SL 7 - ROAD BIKE
The perfect balance
When developing the Ultimate, our goal was to strike the perfect balance between lightness, stiffness, comfort, robustness, and aerodynamics. The result? The most balanced, best-value road bike on the scene.
Aerodynamically optimised
On the road, from just 14 kph, aerodynamic drag is the largest force holding you back. So we optimised the frame forms for minimum drag, through an exhaustive process of wind tunnel testing in collaboration with aero experts Swiss Side. We also integrated the headtube/fork area as much as possible for extra aero gains.
High-grade carbon layup
The CF SL combines the cutting-edge innovations of the SLX and CFR platforms with a carbon layup that strikes the ideal balance between durability and value. By using specially selected fibres, the carbon layup sets the benchmark in terms of toughness.
A new integrated aero seatpost
The Ultimate looks even cleaner and sleeker with this clamp design. The clamp is hidden away in the seat tube, so there’s no extra drag. We combine it with a D-shaped seatpost to reduce air resistance in the seat tube area to an absolute minimum.
SPECIFICATION
| FRAME | FRAME • Canyon Ultimate CF SL Our latest 5th-generation Ultimate frame. Axle dimension: 12x142 mm Tyre clearance: 33 mm Material: Carbon (CF) Weight: 1.05 kg FORK • Canyon FK105 CF Carbon fork optimised for lightness, stiffness, and strength. Axle dimension: 12x100 mm Fork steer tube diameter: 1 1/4" Tyre clearance: 33 mm Material: Carbon (CF) Weight: 410 g |
|---|---|
| DRIVETRAIN | Rear Derailleur • Shimano 105 RD-R7100 12s Weight: 247 g Front Derailleur • Shimano 105 FD-R7100 Weight: 95 g Cassette • Shimano 105 R7101 11-34 12s Number of sprockets: 12 Range: 11-34 Crank • Shimano 105 R7100 Number of chainrings: 2 Bottom bracket • Token Ninja Lite BB4124 Bottom bracket standard: PF 86,5 Weight: 85 g Chain • Shimano CN-M7100 12s |
| BRAKES | Shift-/ Brake Lever • Shimano 105 R7120 2s Number of pistons: 2 Weight: 306 g Shift-/ Brake Lever • Shimano 105 R7120 12s Number of pistons: 2 Weight: 332 g Brake Rotor • Shimano Bremsscheibe Brake Rotor • Shimano Bremsscheibe |
| WHEELS | Wheel • DT Swiss Performance LN Axle dimension: 12x100 mm Rotor mount: Center Lock Rim height: 20 mm Inner width: 20 mm Rim material: Aluminium Weight: 837 g Wheel • DT Swiss Performance LN HG Axle dimension: 12x142 mm Rotor mount: Center Lock Rim height: 20 mm Inner width: 20 mm Rim material: Aluminium Weight: 984 g Tyre • Schwalbe One TLE, 28mm Width: 28 mm Weight: 360 g Thru Axle • Canyon Thru Axle Axle dimension: 12x100 mm Thru Axle • Canyon Thru Axle Axle dimension: 12x142 mm |
| COCKPIT | Cockpit • Canyon CP0030 Aerocockpit One-piece carbon cockpit integrating bar and stem into a single sleek unit. Material: carbon Shape: Ergo Reach: 74 mm Drop: 130 mm Handlebar Tape • Canyon Ergospeed Gel Grippy, durable bar tape with a premium, high-quality, comfortable feel. Color: Black |
| SEAT | Saddle • Selle Italia Model X Width: 145 mm Gender: Unisex Max. Rider Weight: 100 kg Weight: 310 g Seatpost • Canyon SP0055 Custom carbon seatpost with aerodynamic D-shape profile. Clamp diameter: 27,2 mm Setback: 10 mm Material: Carbon (CF) Weight: 108 g Seat Clamp • Canyon GP0223-02 Clamp Set 7x7 |
| ACCESSORIES | Pedals • None included Manuals and Accessories • Canyon Organza Bag Manuals and Accessories • Canyon starter box Manuals and Accessories • Quick Start Guide |
2025 Canyon Ultimate CF SL 7 - Road Bike
- Product Code: CY178826
2025 CANYON ULTIMATE CF SL 7 - ROAD BIKE
The perfect balance
When developing the Ultimate, our goal was to strike the perfect balance between lightness, stiffness, comfort, robustness, and aerodynamics. The result? The most balanced, best-value road bike on the scene.
Aerodynamically optimised
On the road, from just 14 kph, aerodynamic drag is the largest force holding you back. So we optimised the frame forms for minimum drag, through an exhaustive process of wind tunnel testing in collaboration with aero experts Swiss Side. We also integrated the headtube/fork area as much as possible for extra aero gains.
High-grade carbon layup
The CF SL combines the cutting-edge innovations of the SLX and CFR platforms with a carbon layup that strikes the ideal balance between durability and value. By using specially selected fibres, the carbon layup sets the benchmark in terms of toughness.
A new integrated aero seatpost
The Ultimate looks even cleaner and sleeker with this clamp design. The clamp is hidden away in the seat tube, so there’s no extra drag. We combine it with a D-shaped seatpost to reduce air resistance in the seat tube area to an absolute minimum.
SPECIFICATION
| FRAME | FRAME • Canyon Ultimate CF SL Our latest 5th-generation Ultimate frame. Axle dimension: 12x142 mm Tyre clearance: 33 mm Material: Carbon (CF) Weight: 1.05 kg FORK • Canyon FK105 CF Carbon fork optimised for lightness, stiffness, and strength. Axle dimension: 12x100 mm Fork steer tube diameter: 1 1/4" Tyre clearance: 33 mm Material: Carbon (CF) Weight: 410 g |
|---|---|
| DRIVETRAIN | Rear Derailleur • Shimano 105 RD-R7100 12s Weight: 247 g Front Derailleur • Shimano 105 FD-R7100 Weight: 95 g Cassette • Shimano 105 R7101 11-34 12s Number of sprockets: 12 Range: 11-34 Crank • Shimano 105 R7100 Number of chainrings: 2 Bottom bracket • Token Ninja Lite BB4124 Bottom bracket standard: PF 86,5 Weight: 85 g Chain • Shimano CN-M7100 12s |
| BRAKES | Shift-/ Brake Lever • Shimano 105 R7120 2s Number of pistons: 2 Weight: 306 g Shift-/ Brake Lever • Shimano 105 R7120 12s Number of pistons: 2 Weight: 332 g Brake Rotor • Shimano Bremsscheibe Brake Rotor • Shimano Bremsscheibe |
| WHEELS | Wheel • DT Swiss Performance LN Axle dimension: 12x100 mm Rotor mount: Center Lock Rim height: 20 mm Inner width: 20 mm Rim material: Aluminium Weight: 837 g Wheel • DT Swiss Performance LN HG Axle dimension: 12x142 mm Rotor mount: Center Lock Rim height: 20 mm Inner width: 20 mm Rim material: Aluminium Weight: 984 g Tyre • Schwalbe One TLE, 28mm Width: 28 mm Weight: 360 g Thru Axle • Canyon Thru Axle Axle dimension: 12x100 mm Thru Axle • Canyon Thru Axle Axle dimension: 12x142 mm |
| COCKPIT | Cockpit • Canyon CP0030 Aerocockpit One-piece carbon cockpit integrating bar and stem into a single sleek unit. Material: carbon Shape: Ergo Reach: 74 mm Drop: 130 mm Handlebar Tape • Canyon Ergospeed Gel Grippy, durable bar tape with a premium, high-quality, comfortable feel. Color: Black |
| SEAT | Saddle • Selle Italia Model X Width: 145 mm Gender: Unisex Max. Rider Weight: 100 kg Weight: 310 g Seatpost • Canyon SP0055 Custom carbon seatpost with aerodynamic D-shape profile. Clamp diameter: 27,2 mm Setback: 10 mm Material: Carbon (CF) Weight: 108 g Seat Clamp • Canyon GP0223-02 Clamp Set 7x7 |
| ACCESSORIES | Pedals • None included Manuals and Accessories • Canyon Organza Bag Manuals and Accessories • Canyon starter box Manuals and Accessories • Quick Start Guide |
- Brand: Canyon
- Availability: In Stock
USD 1,750.00
