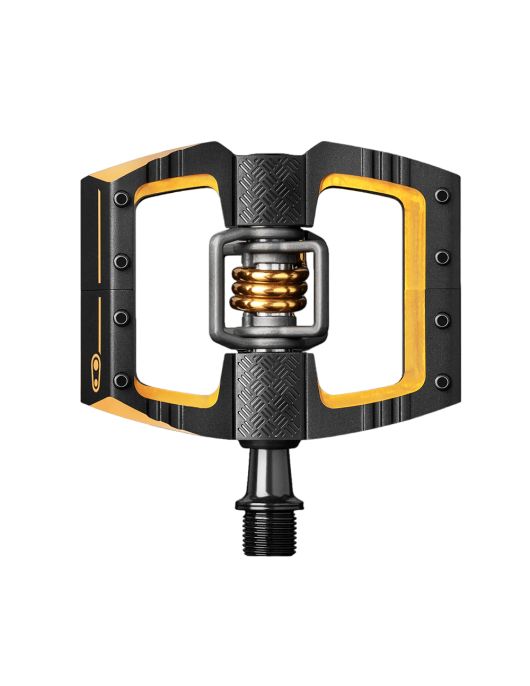

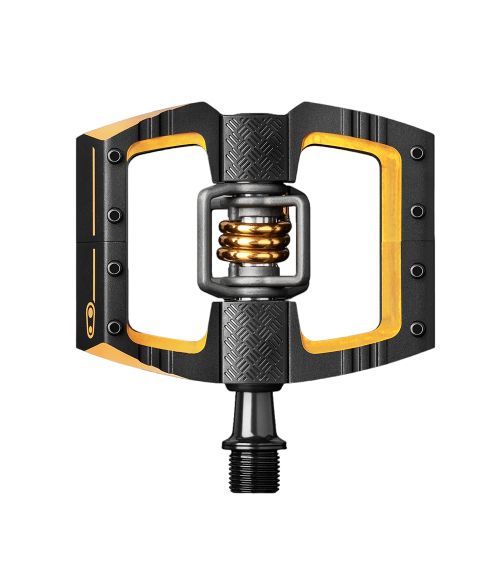

Crankbrothers Mallet DH 11 Set

The Crankbrothers Mallet DH 11 Set is a high-performance clipless pedal system designed for downhill mountain biking. It features a robust construction with a solid aluminum body and a titanium axle for increased strength and durability. The Mallet DH 11 Set utilizes a unique double-sided entry system, allowing riders to easily clip in from either side of the pedal. This makes it quick and convenient to engage and disengage, especially in demanding downhill situations.

To enhance grip and stability, the Mallet DH 11 Set employs an adjustable 8mm traction pad on the pedal platform. This pad can be fine-tuned to provide the desired amount of grip and customization for each rider's preference. The Mallet DH 11 Set also incorporates a chamfered leading edge to reduce rock strikes and provide smoother engagement into the pedal. This feature helps prevent pedal hang-ups and allows for seamless pedaling through technical sections.

Furthermore, the Mallet DH 11 Set utilizes a four-sided entry system, which ensures consistent and reliable engagement even in muddy or challenging conditions. This design helps to shed debris and prevent clogging, maintaining optimal functionality throughout your ride.

Overall, the Crankbrothers Mallet DH 11 Set is a top-of-the-line clipless pedal system that offers exceptional performance, durability, and versatility for downhill mountain bikers. It combines innovative features with high-quality materials, making it a popular choice among professional riders and enthusiasts alike.

FEATURES

- Titanium wings to reduce weight

- Dual chamfered edges to reduce rock-strikes

- Exclusive double-anodized black and gold colorway

- Concave platform for secure foothold

- 8 adjustable pins per side for grip

- Integrated traction pad technology to optimize the shoe/pedal interface

- Ribbed body for better traction when unclipped

- 57mm q-factor for stability at speed

- 4-sided entry / superior mud shedding

- Customizable float & release angle

- Premium bearings & double seal system

- Owners Manual

SPECIFICATIONS

BODY MATERIAL: 6061-T6 Aluminum

BODY DIMS (L X W): 100mm x 78mm

WING MATERIAL: 17-4PH Stainless

SPINDLE LENGTH: 57mm

TRACTION PINS: 8 adjustable per side

PIN LENGTH: 8mm

INNER BEARING TYPE: Igus LL-glide bearing

OUTER BEARING TYPE: Enduro MAX cartridge bearing

ENDCAP: Hex alloy

SPINDLE MATERIAL: Forged SCM 435 Chromoly Steel

SPRING MATERIAL: 300 series stainless steel

MAX RIDER WEIGHT: No restriction

WEIGHT: 445g per pair

INCLUDED CLEAT TYPE: 15° / 20° Standard Release, 6° Float

CLEAT NOTICE: Third-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty.

WARRANTY: 5 years
