Product Overview

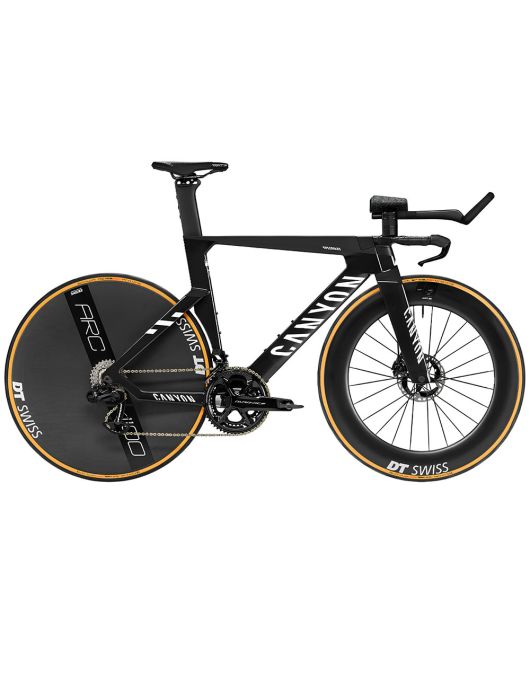

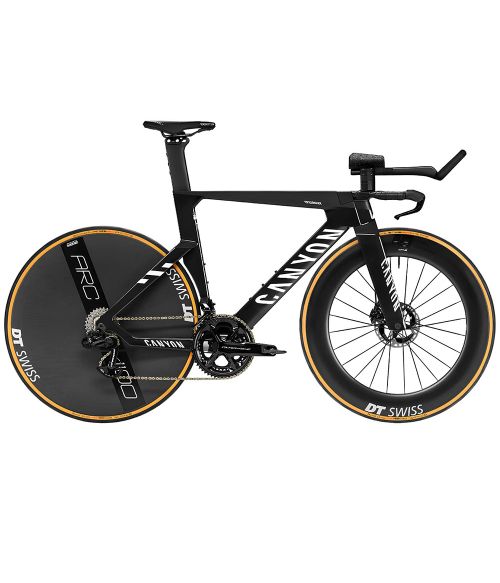

The 2024 Canyon Speedmax CFR TT Road Bike is a top-tier time trial machine engineered for elite athletes and serious competitors. Its carbon CFR frame, designed with ultra-rare Toray M40X fibers and optimized via CFD in collaboration with Swiss Side, delivers uncompromising aerodynamics and speed. This UCI-legal bike comes with fully integrated components, deep-section DT Swiss wheels, and Shimano Dura-Ace Di2 drivetrain for the ultimate in precision, efficiency, and control.
Specifications
| Frame | Canyon Speedmax CFR TT Disc, Carbon (CFR), 12x142 mm axle, UCI-legal, 1030 g (size M) |
| Fork | Canyon FK0079 CF Disc, Carbon (CF), 1 1/4" steer tube, 30 mm tyre clearance |
| Rear Derailleur | Shimano Dura-Ace Di2 R9250, 12-speed |
| Front Derailleur | Shimano Dura-Ace Di2 R9250 |
| Shifters | Shimano Dura-Ace Di2 R9160 TT / R9180 |
| Cassette | Shimano Dura-Ace R9200, 12-speed, 11-30T |
| Crankset | Shimano Dura-Ace Di2 R9200 Powermeter, double chainring |
| Bottom Bracket | Ceramicspeed BB86 Coated |
| Chain | Shimano M9100, 12-speed, SIL-TEC coated |
| Brakes | Shimano Flat Mount +20 mm adapter |
| Brake Rotors | Shimano XTR RT-MT900, 160 mm |
| Wheels (Front) | DT Swiss ARC 1100 Dicut, 12x100 mm, 80 mm rim height |
| Wheels (Rear) | DT Swiss ARC 1100 Disc SH11, 12x142 mm |
| Tyres | Schwalbe Pro One, 25 mm (front), 28 mm (rear) |
| Thru Axles | DT Swiss 12x100 mm (front), 12x142 mm (rear) |
| Stem | Canyon V19 Short, Aluminium, 65 mm |
| Handlebar | Canyon HB0054 Basebar flat, 390 mm width, 275 g |
| Aerobar | Multiple: Extension bodies, connection plate, Canyon Pro Armpad Sets |
| Bar Tape | Canyon Ergospeed Gel, black |
| Grips | Canyon Grip V01 Round (left & right) |
| Saddle | Selle Italia Watt Kit Carbonio Superflow |
| Seatpost | Canyon SP0048 Aero Seatpost, 300 g |
| Light | Reflector Set |
| Pedals | Not included |
| Accessories | Organza Bag, Smallbox, CFR Brandbooklet |
Features
- Ultra-Light Carbon CFR Frame: Crafted from high-end Toray M40X carbon fibers for superior stiffness and reduced weight.
- CFD-Optimized Aerodynamics: Developed in partnership with Swiss Side and validated in the wind tunnel.
- Fully UCI-Compliant: Designed to push aero limits while remaining within race regulations.
- Integrated Cockpit: Zipp Vuka Shift extensions with built-in shifters eliminate clutter and increase efficiency.
- Premium Wheelset: DT Swiss ARC 1100 deep-section wheels ensure top-tier aerodynamics and control at high speeds.
- Shimano Dura-Ace Di2: Race-proven electronic shifting system with powermeter-equipped crankset.
Why Choose This Product?
The 2024 Canyon Speedmax CFR TT is engineered for athletes who demand podium-level performance. With cutting-edge aerodynamics, elite carbon materials, and a UCI-legal design, this bike is built to shave seconds off your personal bests. Whether you're competing in time trials or triathlons, the Speedmax CFR TT offers the precision, adjustability, and speed required to dominate the course.
2024 Canyon Speedmax CFR TT - Road Bike
- Product Code: C830621
Product Overview
The 2024 Canyon Speedmax CFR TT Road Bike is a top-tier time trial machine engineered for elite athletes and serious competitors. Its carbon CFR frame, designed with ultra-rare Toray M40X fibers and optimized via CFD in collaboration with Swiss Side, delivers uncompromising aerodynamics and speed. This UCI-legal bike comes with fully integrated components, deep-section DT Swiss wheels, and Shimano Dura-Ace Di2 drivetrain for the ultimate in precision, efficiency, and control.
Specifications
| Frame | Canyon Speedmax CFR TT Disc, Carbon (CFR), 12x142 mm axle, UCI-legal, 1030 g (size M) |
| Fork | Canyon FK0079 CF Disc, Carbon (CF), 1 1/4" steer tube, 30 mm tyre clearance |
| Rear Derailleur | Shimano Dura-Ace Di2 R9250, 12-speed |
| Front Derailleur | Shimano Dura-Ace Di2 R9250 |
| Shifters | Shimano Dura-Ace Di2 R9160 TT / R9180 |
| Cassette | Shimano Dura-Ace R9200, 12-speed, 11-30T |
| Crankset | Shimano Dura-Ace Di2 R9200 Powermeter, double chainring |
| Bottom Bracket | Ceramicspeed BB86 Coated |
| Chain | Shimano M9100, 12-speed, SIL-TEC coated |
| Brakes | Shimano Flat Mount +20 mm adapter |
| Brake Rotors | Shimano XTR RT-MT900, 160 mm |
| Wheels (Front) | DT Swiss ARC 1100 Dicut, 12x100 mm, 80 mm rim height |
| Wheels (Rear) | DT Swiss ARC 1100 Disc SH11, 12x142 mm |
| Tyres | Schwalbe Pro One, 25 mm (front), 28 mm (rear) |
| Thru Axles | DT Swiss 12x100 mm (front), 12x142 mm (rear) |
| Stem | Canyon V19 Short, Aluminium, 65 mm |
| Handlebar | Canyon HB0054 Basebar flat, 390 mm width, 275 g |
| Aerobar | Multiple: Extension bodies, connection plate, Canyon Pro Armpad Sets |
| Bar Tape | Canyon Ergospeed Gel, black |
| Grips | Canyon Grip V01 Round (left & right) |
| Saddle | Selle Italia Watt Kit Carbonio Superflow |
| Seatpost | Canyon SP0048 Aero Seatpost, 300 g |
| Light | Reflector Set |
| Pedals | Not included |
| Accessories | Organza Bag, Smallbox, CFR Brandbooklet |
Features
- Ultra-Light Carbon CFR Frame: Crafted from high-end Toray M40X carbon fibers for superior stiffness and reduced weight.
- CFD-Optimized Aerodynamics: Developed in partnership with Swiss Side and validated in the wind tunnel.
- Fully UCI-Compliant: Designed to push aero limits while remaining within race regulations.
- Integrated Cockpit: Zipp Vuka Shift extensions with built-in shifters eliminate clutter and increase efficiency.
- Premium Wheelset: DT Swiss ARC 1100 deep-section wheels ensure top-tier aerodynamics and control at high speeds.
- Shimano Dura-Ace Di2: Race-proven electronic shifting system with powermeter-equipped crankset.
Why Choose This Product?
The 2024 Canyon Speedmax CFR TT is engineered for athletes who demand podium-level performance. With cutting-edge aerodynamics, elite carbon materials, and a UCI-legal design, this bike is built to shave seconds off your personal bests. Whether you're competing in time trials or triathlons, the Speedmax CFR TT offers the precision, adjustability, and speed required to dominate the course.
- Brand: Canyon
- Availability: In Stock
