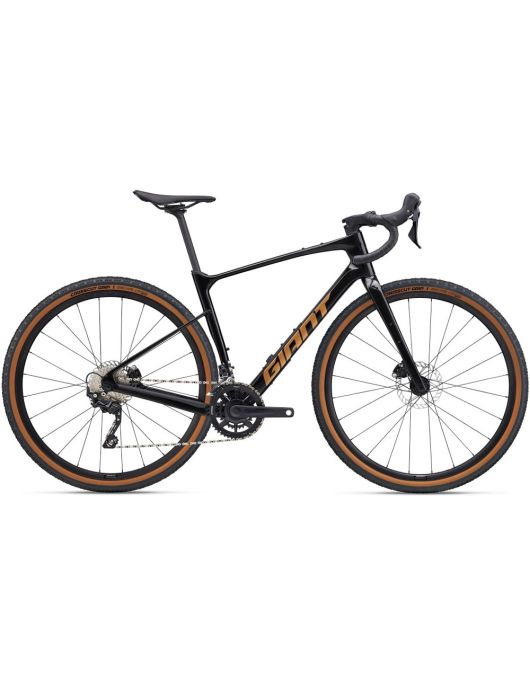

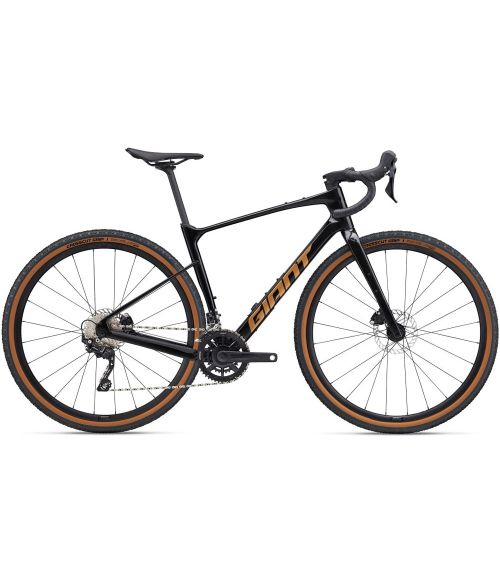

2025 Giant Revolt Advanced 3 Road Bike
The 2025 Giant Revolt Advanced 3 is a high-performance gravel bike featuring an advanced composite frame and full-composite fork for lightweight efficiency. It includes integrated cable routing, a flip chip dropout for adjustable geometry, and D-Fuse technology for enhanced comfort. The bike is equipped with a Shimano GRX groupset for reliable shifting and hydraulic disc brakes for superior stopping power.
SPECIFICATION
| FRAME |
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
BB Standard: BB86/BB92, Press Fit Tire Clearance: 53c Color: Gloss Panther |
|---|---|
| FORK | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Bottom Bracket | FSA BB-AL86, press fit |
| Stem | Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm /span> |
| Saddle | Giant Grit |
| Seatpost |
Giant D-Fuse, composite, 14mm offset
Type: Rigid |
| Pedals | PEDALS NOT SUPPLIED |
| Grips | Stratus Lite 3.0 |
| Rear Derailleur | Shimano GRX-RX400 |
| Front Derailleur | Shimano GRX-RX400 |
| Crank | FSA Omega, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Shifters | Shimano GRX RX-400, 2x10 |
| Cassette | Shimano Tiagra, 11x34 |
| Chain | KMC X10-1 |
| Brakes |
Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Type: Hydraulic Disc |
| Brake Levers | Shimano GRX RX-400 hydraulic |
| Rims | Giant P-X2 Disc wheelset, alloy |
| Spokes | Sapim |
| Front Hub | Giant alloy, 12mm thru-axle |
| Rear Hub | Giant alloy, 12mm thru-axle |
| Tires | Giant Crosscut Grip TR, 700x40c, tubeless |
2025 Giant Revolt Advanced 3 - Road Bike
- Product Code: G120344
2025 Giant Revolt Advanced 3 Road Bike
The 2025 Giant Revolt Advanced 3 is a high-performance gravel bike featuring an advanced composite frame and full-composite fork for lightweight efficiency. It includes integrated cable routing, a flip chip dropout for adjustable geometry, and D-Fuse technology for enhanced comfort. The bike is equipped with a Shimano GRX groupset for reliable shifting and hydraulic disc brakes for superior stopping power.
SPECIFICATION
| FRAME |
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
BB Standard: BB86/BB92, Press Fit Tire Clearance: 53c Color: Gloss Panther |
|---|---|
| FORK | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Bottom Bracket | FSA BB-AL86, press fit |
| Stem | Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm /span> |
| Saddle | Giant Grit |
| Seatpost |
Giant D-Fuse, composite, 14mm offset
Type: Rigid |
| Pedals | PEDALS NOT SUPPLIED |
| Grips | Stratus Lite 3.0 |
| Rear Derailleur | Shimano GRX-RX400 |
| Front Derailleur | Shimano GRX-RX400 |
| Crank | FSA Omega, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Shifters | Shimano GRX RX-400, 2x10 |
| Cassette | Shimano Tiagra, 11x34 |
| Chain | KMC X10-1 |
| Brakes |
Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Type: Hydraulic Disc |
| Brake Levers | Shimano GRX RX-400 hydraulic |
| Rims | Giant P-X2 Disc wheelset, alloy |
| Spokes | Sapim |
| Front Hub | Giant alloy, 12mm thru-axle |
| Rear Hub | Giant alloy, 12mm thru-axle |
| Tires | Giant Crosscut Grip TR, 700x40c, tubeless |
- Brand: Giant
- Availability: In Stock
